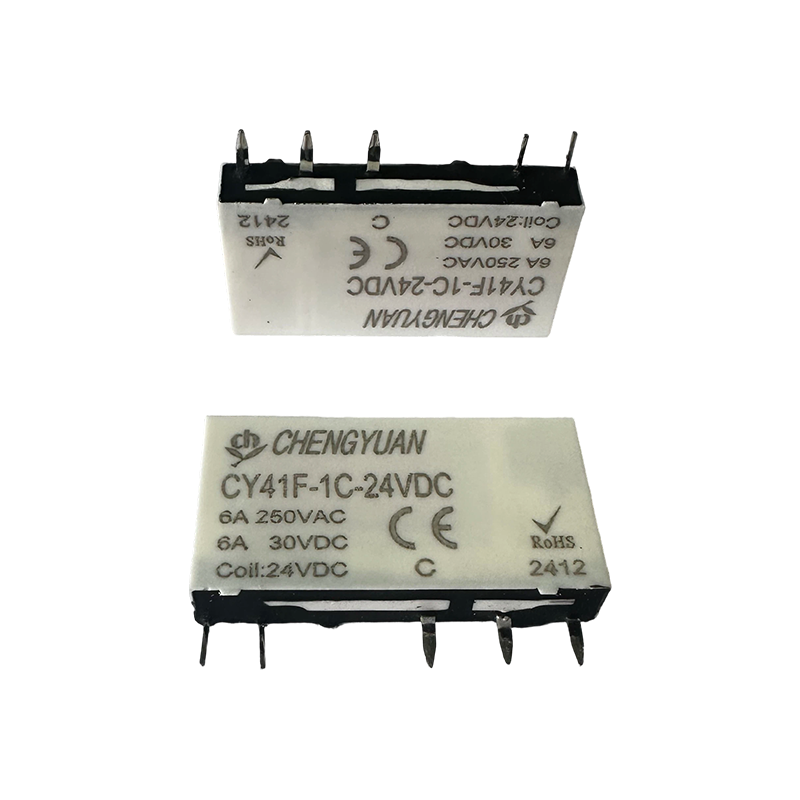

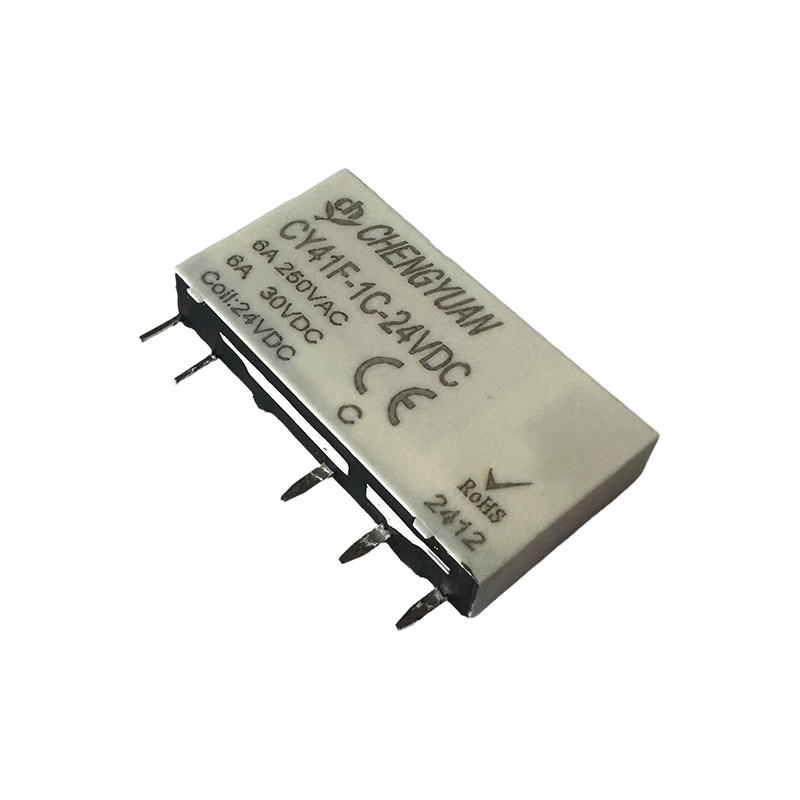

Features:
Ultra tenue (modo 5 mm latum)
6A contactu mutandi facultatem
● Dielectric voltage inter coil et contactus: 4kV
● Surge intentione resistentiae inter coil et contactus: 6kV
Meets VDE0700/0631 confirmata velit requisita
● Maximum sensum, potentia consummatio circiter 0.17W
Locum missiones:
Domus Adjumenta: Potestas imperium pro summus potentia parva adjumenta sicut electricum calentium et inductionem cookers
Industrial Control: Automation equipment, PLCs small, motricis control circuits
Smart Power Equipment: Smart distribution boxes, the auxiliary control of praecipiens acervos
● Securitatis Equipment: magna potentia commeatus, accessum imperium ratio circuit mutandi
Contactus Morbi
| Contactus configurationis | 1H, 1Z |
| Contactus Resistentia (1) | Contactus Aurum patella: ≤ 30mΩ (1A 6VDC); Contactus non-aurum patella: ≤ 100mΩ (1A 6VDC) |
| Contact Material | AgSnO₂, AgNi |
| Contactus Lond (Resistive) | 6A 250VAC / 30VDC |
| Maxime Switching intentione | 400VAC / 300VDC |
| Maxime Switching Current | 6A |
| Maxime Switching Power | 1500VA / 180W |
| Minimum Lond (2) | Non-aureum: 5VDC 100mA; Aurum patella: 5VDC 10mA |
| Mechanica Durabilitas (3) | 1×10⁷ circuitus |
| Electrical Durabilitas | H type: circuitus 6×10⁴ (AgNi, 6A 250VAC/30VDC, onus resistens, 85℃, 1s in 9s off) Z type: circuitus 3×10⁴ (NO, AgNi, 6A 250VAC/30VDC, onus resistens 85℃, 1s in 9s off); circuitus 1×10⁴ (NC, AgNi, 6A 250VAC/30VDC, onus resistens, 85℃, 1s 9s off) |
Notae:
(1) Omnes superiores valores initiales sunt.
(2) Supra minimum onus valorem referens est, applicabilis ad normalem temperiem, humiditatem et pressionem ambitus cum fibulis quae sursum sunt spectantes. Haec relatio pretii mutare potest secundum mutandi frequentiam, condiciones environmental, servitium vitae expectatae, et directionem institutionis. Ideo, quaeso, confirmatio conductionis probat cum oneribus actualibus ante usum, et commendatur ut infra nulla gradus Celsius usus vitet.
(III) Non-onus test, nulla mechanica damna post tentationem.
Parameters Coil
| Rated Coil Power | 5VDC~ 24VDC: Proxime 170mW |
| 48VDC, 60VDC: Proxime 210mW |
Nota:
(1) Pro oneribus sine temperatura certa in mensa, siccus ambiens est locus temperatus.
Morbi laoreet euismod
| Parameter | Specification |
| Nulla Resistentia | 1000MΩ (500VDC) |
| Dielectric resistunt intentioni | Inter Coil et Contactus | 4000VAC pro 1min |
| Inter Open Contactus | 1000VAC pro 1min |
| Tempus agunt (at rated voltage) | ≤ 8ms |
| Dimittis tempus (at rated voltage) | ≤ 4ms |
| * Offensus (1) | Stabilitas | 49m/s² |
| Fortitudo | 980m/s² |
| Vibration * (1) | 10Hz~ 55Hz, 1mm amplitude duplex |
| Umor | 5% ~ 85% RH |
| Temperatus dolor | -40℃ ~ 85℃ |
| Terminatio Type | PCB genus |
| Pondus | circa 5g* |
| Packaging Type | Genus plastic-obsignatum, genus solidaribus repugnans |
| Rated Voltage (VDC) | Voltage (VDC) (1) | Dimittis intentione (VDC) (1) | Maximam intentionem (VDC) (2) | Coil Resistentia |
| 5 | ≤ 3.75 | ≥ 0.25 | 7.5 | 147×(1±10%)Ω |
| 6 | ≤ 4.50 | ≥ 0.30 | 9.0 | 212×(1±10%)Ω |
| 9 | ≤ 6.75 | ≥ 0.45 | 13.5 | 476×(1±10%)Ω |
| 12 | ≤ 9.00 | ≥ 0.60 | 18 | 848×(1±10%)Ω |
| 18 | ≤ 13.5 | ≥ 0.90 | 27 | 1906×(1±15%)Ω |
| 24 | ≤ 18.0 | ≥ 1.20 | 36 | 3390×(1±15%)Ω |
| 48 (3). | ≤ 36.0 | ≥ 2.40 | 72 | 10600×(1±15%)Ω |
| 60 (3). | ≤ 45.0 | ≥ 3.00 | 90 | 16600×(1±15%)Ω |
