Features:
1. Magnetic latching Function: Pulsuum excitatio utitur; angulus potentia tantum in mutandi momento consumit, et contactus status sui post potentiam clausum est, signanter deminutio systematis energiae consumendi.
2. High Load Switching: Contactus support 8A current switching, meeting the high power control needs of domestic adjuments such as a conditioners air and proin furns.
3. Alta intentione intentionis Isolatio resistendi: Intentio resistendi inter gyros et contactus 5000V attingit, praestantem praebens electricae solitudo perficiendi et tutandi ambitum moderandi procurans.
4. Foedus Design: parvae magnitudinis et compactae structurae, idealis densitatis altae in tabulas PCB ascendentes.
5. Lata intentione Coil Range: varias offert notationes varias ab 3VDC ad 48VDC, accommodans ad diversas voltages potestate.
6. Salutis Certification: TUV et CQC certified, obtemperans securitati internationali signis.
Typicam Applications:
1. Communicatio Equipment: Usus in communicatione statio base et commutatione armorum ad humilem potentiam in commutatione ac signo routing.
2. Adjumentum hospitii: Apta condicionibus aeriis, proin clibanis, et aliis instrumentis ut potentiae conservativae energiae switch.
3. Securitatis Equipment: In securitatibus systematibus terroribus adhibitis et aditu moderatio est ut status originalis densis vel terroris servetur etiam in eventu virtutis eu.
4. Officii Apparatus: Applicatio in officio instrumenti automationis, ut exscriptores et impressores, ad redigendum sto- potentia consummationis.
Contactus Data
| Type | CYA |
| Contactum materiale | Argentum miscendum |
| Contactus resistentia | 100 mΩ max.(1A 16VDC) |
| Ratum onere (onere resistente | 10A250VAC |
| Maximilianus. mutandi current | 15A |
| Maximilianus. commutatione voltage | 250VAC |
| Maximilianus. mutandi potestatem | 2500VA |
| Min. commutatione onere | 6V 1A |
Characteres
| Tempus operandi (coil voltage aestimatum) | 8ms Maximilianus. ( Nec diode) |
| Dimittis tempus | 5ms Maximilianus. ( Nec diode) |
| Resistentia Insulation | Min 1000MΩ (ad 500VDC) |
| Dielectric viribus | Inter notos apertos: 750VAC, 50/60Hz pro 1min |
| Inter coil et contactum: 1500VAC, 50/60Hz pro 1min |
| Vibratio resistendi | Destructive | 10-55Hz, duplici amplitudine ex 1.5 mm |
| Eget | 10-55Hz, duplici amplitudine ex 1.5 mm |
| Concussa resistentia | Eget | 10G Min |
| Destructive | 10G Min |
| patientia | Mechanica patientia （10800ops./h) | 10,000, ops. |
| Electricam patientiam (360ops./h) | Opis 100,000.(locus temperatus) |
| Ambiens temperatus | -40℃~ 85℃ (nulla condensatio) |
| Pondus | Approx.8.5g |
Data Coil (in 20℃)
| Nominal voltage (VDC) | Nominal operans current ±10%(mA) | Coil resistentia ±10%(Ω) | Nominal operating potentia | Agunt voltage (Max.) | Dimittis voltage (Min.) | Maximilianus. licita voltage |
| 3 | 120 | 25 | Proxime 0.36W | LXXV% nominis voltage | 5% nominis voltage | 130% de intentione nominali |
| 5 | 71.42 | 70 |
| 6 | 60 | 100 |
| 9 | 40 | 225 |
| 12 | 30 | 400 |
| 15 | 24 | 625 |
| 18 | 20 | 900 |
| 24 | 15 | 1600 |
| 48 | 7.5 | 6400 |
Data supra ostensa sunt valores initiales. Noli malum maximum licita voltage in coil plus quam X minuta vitare overheating de coil.

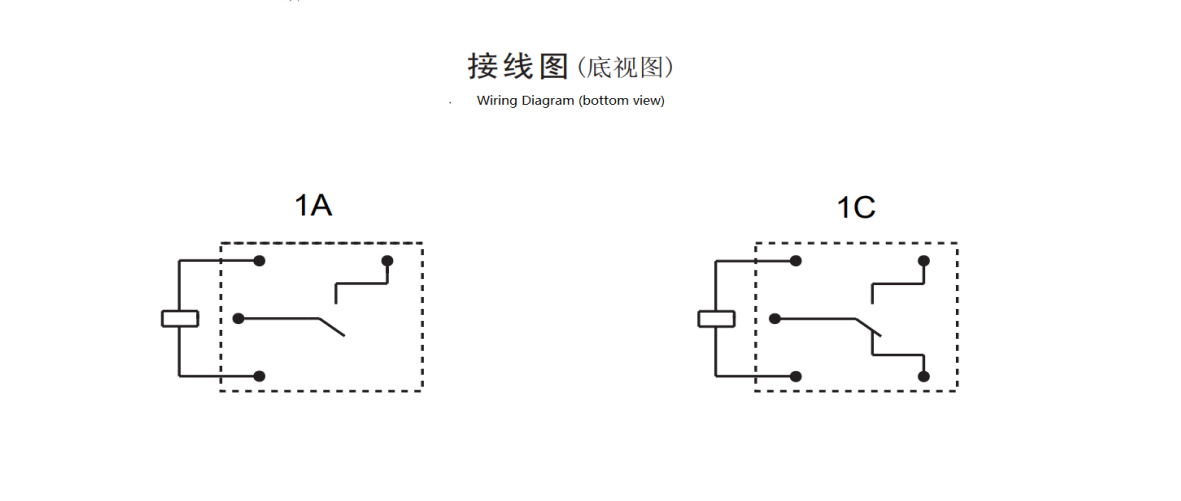

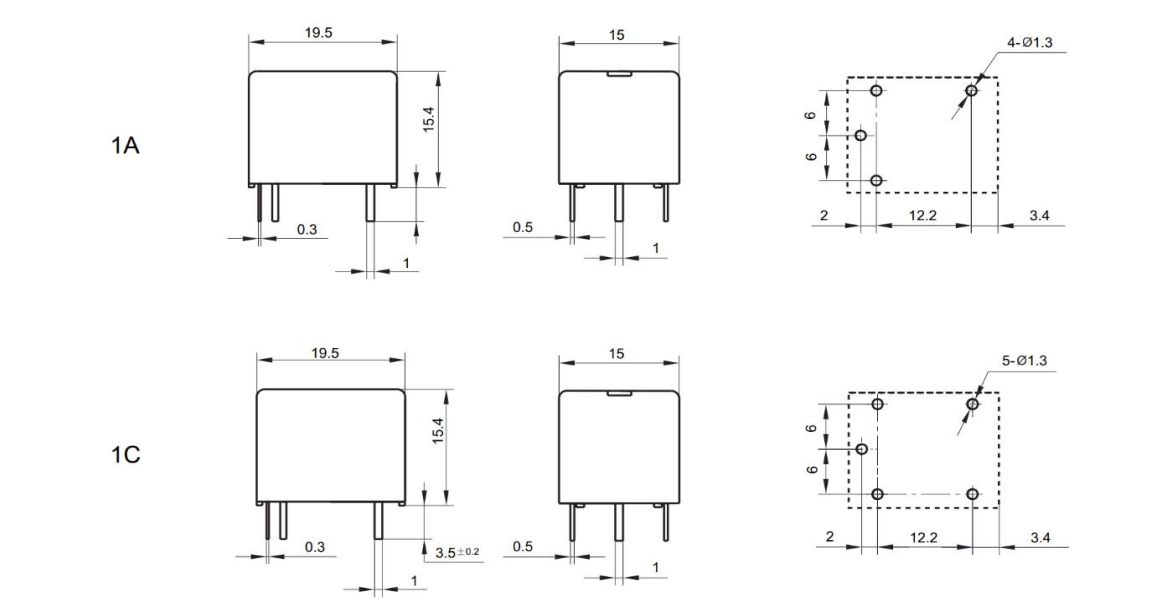

Dimensio adumbratim, Wiring imaginem, PCB proposito (Unit: mm)

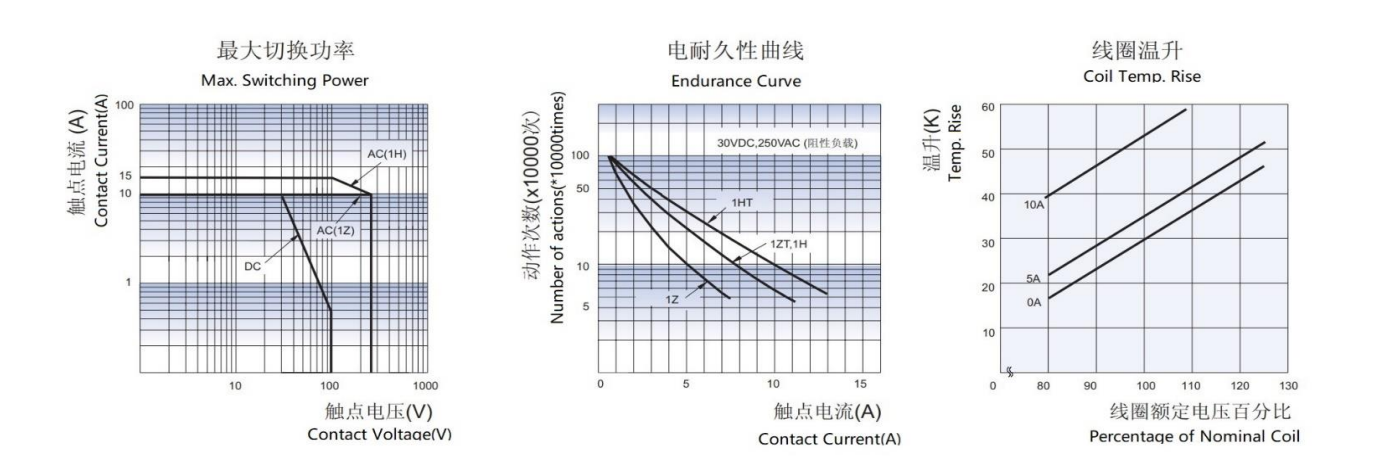

Curvae propriae
CYA - 1 - C - 12VDC - H - D - T - XX
1 2 3 4 5 6 7 8
1: Type: CYA
2: Numerus polium: 1-1Pole
3: Conta Dispositio: C Ex C H Ex A cautum B Ex B
4: Nominalium intentione: 3,5,6,9,12,18,24,48VDC
5: Clausura Coloris: T -White; H-Nigrum; L-Blue 6: Coil Potentia: D-0.45W L-0.36W
7: Tutela Construction: S-Flux probata,
SH- signati genus washable
8: Parametrum speciale: genus Nil-Latinum
Litterae vel numero-Special postulationem
(1): Flux-probatio mensae in ambitu cum scelerisque utendum non potest, ut H2S, SO2, NO2, pulvis, etc.
(2): Aquae purgatio vel superficies processus non suggeritur post schedularum fluxum probationem in PCB convenerunt.
(3): Requisita Customer-specialis (XX) a nostro collegio aestimabuntur ac deinde notis notis notantur.
